SJSZ 80/156 PVC Sheet Extrusion Machine 350Kg/H-450Kg/H PVC Sheet Line

Name: SJSZ 80156 PVC Sheet Extrusion Machine 350KgH450KgH PVC Sheet Line
Brand: Changyue
Price: 1 USD

Buy cheap SJSZ 80/156 PVC Sheet Extrusion Machine 350Kg/H-450Kg/H PVC Sheet Line product

Certification : CE

Model NO. : SJSZ80/156

Board Layers : Single Plate

Screw No. : Double-screw

Automation : Automatic

Computerized : Computerized

Customized : Customized

Condition : New

Extruder Size : Sjsz 80/156 Twin Conical Screw Extruder

Machine Output : 350-450 Kg/H

Inverter Brand : ABB / Delta

Motor Brand : Weg / Siemens

Loading Port : Qingdao Port, China

Transport Package : Export Package

Specification : SJSZ 80/156

Trademark : CHANGYUE

Origin : Qingdao, China

HS Code : 84772090

Supply Ability : 400 Kg/H

Package Size : 3500.00cm * 300.00cm * 250.00cm

Package Gross Weight : 15000.000kg

After-sales Service : on Site Installtion

Warranty : One Year

Product Type : PVC Board

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : Shandong, China

Brand Name : Changyue

Packaging Details : Export Film Packing / According To Customer

Delivery Time : 15 Days (1 - 1 Pieces) To Be Negotiated ( > 1 Pieces)

Contact Now

SJSZ 80/156 PVC Plastic Artificial Marble Sheet Extrusion Machine for End Customers

PVC plastic artificial marble sheet extrusion machine / production line

plastic PVC artificial marble sheet making machine / production line

PVC artifical Marble Sheet Production Line

PVC sheet production line

Product Models

There are two different models with different production capacity.

Model Number	JG-FDLS80/156	JG-FDL80/156-FH
Screw dia.	Ø80/Ø156mm	Ø80/Ø156mm	Ø51/Ø105mm
Screw speed	1-37.7 r/min	1-37.7r/min	1-37.7r/min
Main extruder power	75kw	75kw	15kw
Heat power	36kw	36kw	8kw
Extrusion output	150-350kg/h	250-450kg/h
Sizing method	Three roll calender sizing
Panel thickness	0.5-30mm	2-30mm
Panel width	600-2500mm	600-2500mm

SJSZ 80/156 PVC Sheet Extrusion Machine 350Kg/H-450Kg/H PVC Sheet Line

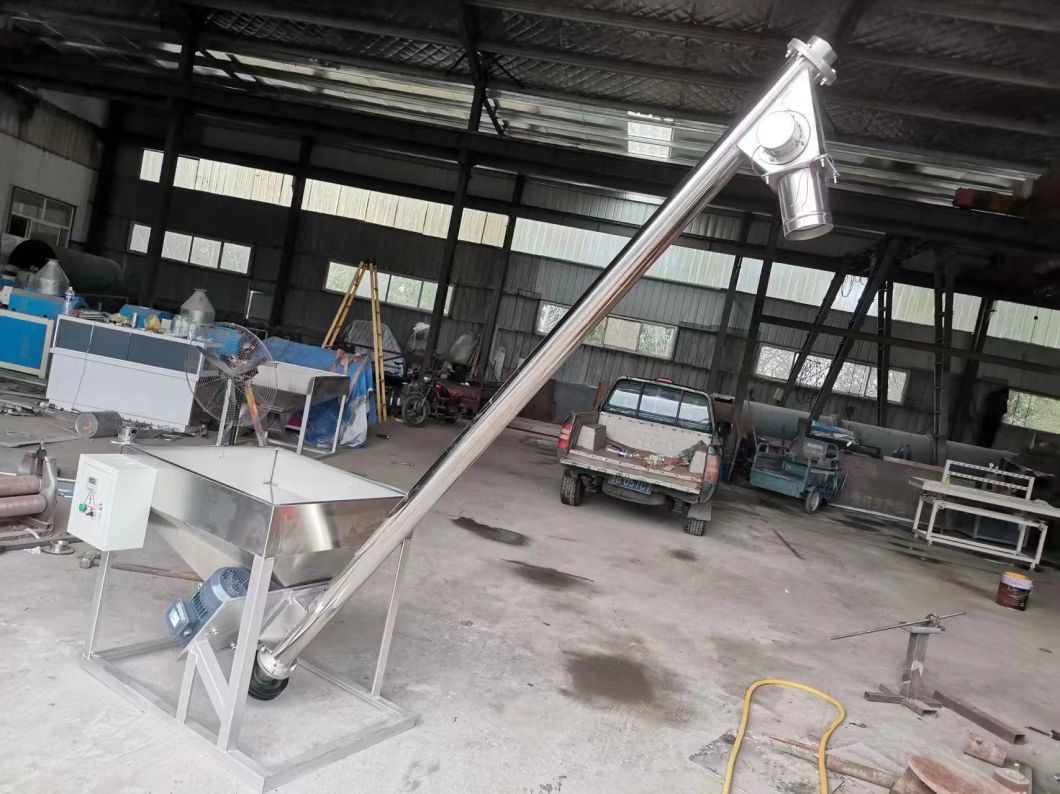

spiral auto loader

1.MATERIAL: SS
2. LENGTH: 4.5 M
3. SUITBLE MATEIAL: PVC POWDER

TWIN CONICAL SCRWE EXTRUDER

1. EXTRUDER SIZE: SJSZ80/156
2. SCREW TYPE: TWIN CONICAL SCREW EXTRUDER
3. GEAR BOX: JIANGYIN BRAND
4. HEATER: CASTING ALUMINUM HEATER
5. FEEDER: TWIN SCREW FEEDER
6. MAIN MOTOR BRAND: WEG / SIEMENS
7. CONTROL BOX
INVERTER BRAND: ABB / DELTA
CONTACTORS: SIEMENS
AIR SWITCH: SIMENS
SIMENS PLC CONTROL

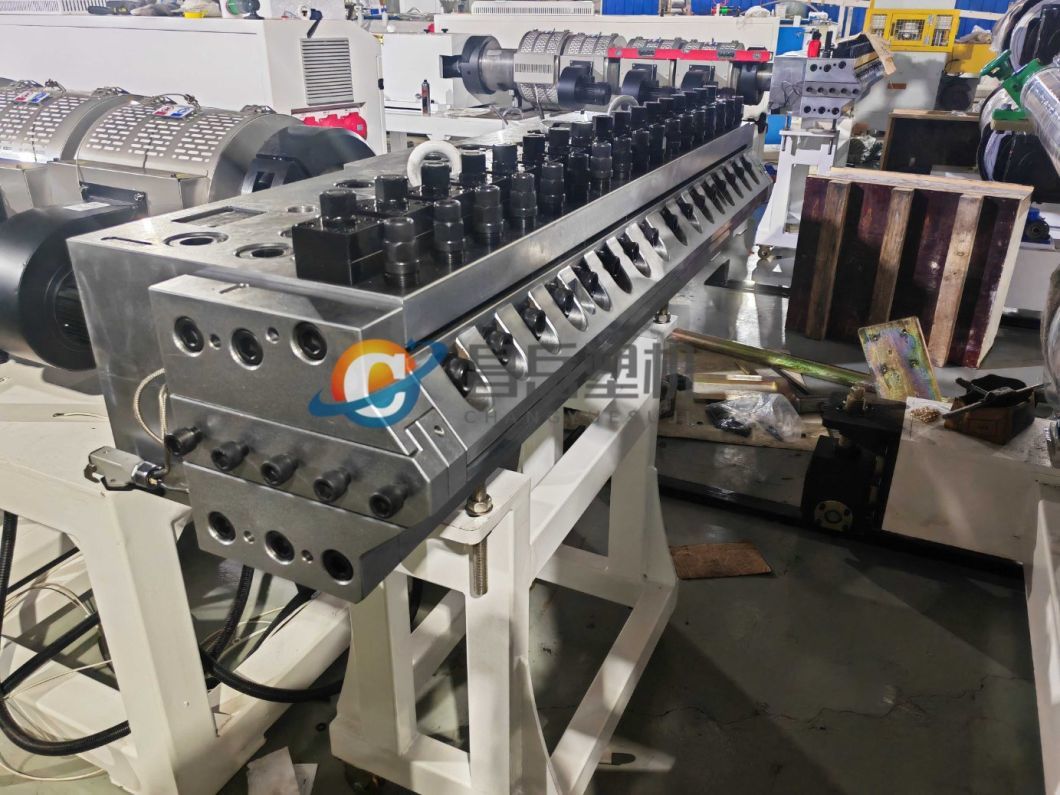

T DIE

1. MOULD WIDTH: 1350 MM
2. SHEET THICKNESS: 2 -4 MM
3. HEATING ZONE: 9 ZONES
4. HEATING POWER: 20 KW

3 ROLLER CALERDER

1. ROLLER SIZE: 450 MM X 1500 MM
2. FILM LAMINATION DEVICE
3. TEMPERATURE CONTROLLER
4. ROLLER DRIVING MOTOR : 1.1 KW

COOLING BRACKET & EDGE CUTTER & HAUL OFF

1. COOLING BRACKET LENGTH: 12 M
2. EDGE CUTTER: 3 PCS
3. HAUL OFF: RUBBER ROLLER

GUILLOTINE & ROBOT STACKER

1. CUTTING WIDTH: 1300 MM
2. ROBOT STACKER

SJSZ 80/156 PVC Sheet Extrusion Machine 350Kg/H-450Kg/H PVC Sheet Line
